TM-2013 TRMS 660A AC/DC Clamp meter

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Taiwan, China
Brand Name:
TENMARS
Model Number:
TM-2013
Dimensions:
252mm * 91mm * 22mm
Measuring Current Range:
0.1A to 660A
Measuring Voltage Range:
0.1mV to 750V
Measuring Resistance Range:
0.1Ω to 4000Ω
Display Type:
Digital Only
Jaw Capacity:
40mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Gift Box+Carrying Bag
Port
Shanghai
Lead Time :
3-10 working days after we receive down payment

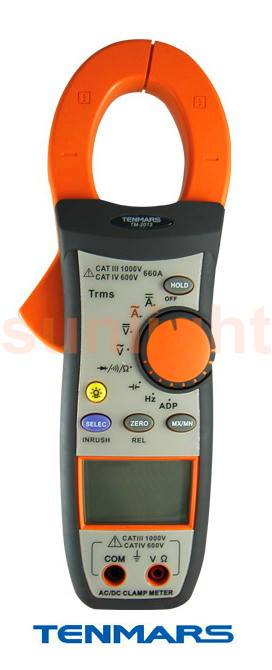

TM-2013 TRMS AC-DC Clamp meter



Description:
CAT IV 600V, CAT III 1000V
LCD backlit display, with maximum reading of 6600.
AC voltage range: 0 to 750V.
AC current range: 0 to 660A.
DC voltage range: 0 to 1000V.
DC Current: 0 to 660A.
Resistance measurement to 66 megohms.
Data Hold, Min/Max, Autoranging, DCA Zero.
Test Ranges: ACV, ACA, Resistance, Frequency, Diode, Continuity.
Work light.
Auto Power Off.
Double Injection outer case.



Specification:

Maximum Current

660 Amps

Display

6600 counts

Max. Conductor Size

40mm

AC Current

0.1A to 660A

DC Current

0.01A to 660A

DCA

Zero Adjustment

AC Voltage

0.1mV to 750V

DC Voltage

0.1mV to 1000V

Resistance

0.1Ω to 4000Ω,

Continuity Buzzer

Yes

Diode

Test voltage

Frequency

1Hz to 660KHz

True Rms

Yes

Backlit Display

Yes

Work Light

Yes

Autoranging

Yes

Auto Power Off

Yes

Inrush

Yes

Data Hold

Yes

Min/Max

Yes

Dimensions

252mm (L) x 91mm (W) x 22mm (D)

TM-2013 TRMS AC-DC Clamp meter-Sunlight
