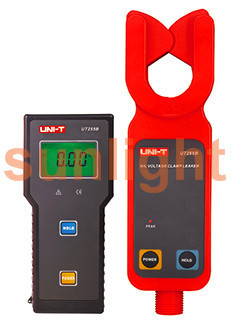

High Voltage Clamp Ammeter, AC Leakage Clamp Meter, Wireless Transmission UT255B

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
UNI-T
Model Number:
UT255B
Dimensions:
68mm * 245mm * 40mm
Measuring Current Range:
0.01mA/100.0A/600.0A
Measuring Voltage Range:
0V~69KV
Display Type:
Digital Only
Jaw Capacity:
33mm
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Gift Box+Tool Box
Port
Shanghai
Lead Time :
3-10 working days after we receive down payment

Specification:

Specifications

Range

Best Accuracy

Model



UT255B

Leakage Current(A)

0.01mA~100.0A

±(1%+5)

100.0A~600.0A

±(2%+5)

Voltage(Freq.)

0V~69KV(50Hz/60Hz)

Yes

Features

Display Mode

4 Digits Display LCD

Yes

Jaw Capacity



33mm

Auto Range



Yes

Wireless Transmission

≤30m

Yes

Data Recall



Yes

Data Logging



99

Peak Value



Yes

LCD Backlight



Yes

Data Hold



Yes

Auto Power Off

Around 15 Minutes

Yes

Low Battery Indication



Yes

Over-Range Display

OL

Yes

Test Mode

Clamp CT, Integral Approach

Yes

Sample Rate

About 2 times/second

Yes

General Characteristic

Power

1.5V Alkaline Batteries(LR03)X 4

LCD Size

47mm X 28.5mm

Product Color

Red and Grey

Product Net Weight

335g

Product Size

68mm X 245mm X 40mm

Standard Accessories

Batteries,Insulation Rod,Receiver,Tool Box

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

6 PCs

Standard Carton Measurement

1030mm X 520mm X 450mm (0.241CBM Per Standard Carton)

Standard Carton Gross Weight

40Kg



Contrast:

Specifications

Range

Best Accuracy

Model



UT255A

UT255B

Leakage Current(A)

0.01mA~100.0A

±(1%+5)

±(1%+5)

100.0A~600.0A

±(2%+5)

±(2%+5)

Voltage(Freq.)

0V~69KV(50Hz/60Hz)

Yes

Yes

Features

Display Mode

4 Digits Display LCD

Yes

Yes

Jaw Capacity



33mm

33mm

Auto Range



Yes

Yes

Wireless Transmission

≤30m



Yes

Data Recall



Yes

Yes

Data Logging



99

99

Peak Value



Yes

Yes

LCD Backlight



Yes

Yes

Data Hold



Yes

Yes

Auto Power Off

Around 15 Minutes

Yes

Yes

Low Battery Indication



Yes

Yes

Over-Range Display

OL

Yes

Yes

Test Mode

Clamp CT, Integral Approach

Yes

Yes

Sample Rate

About 2 times/second

Yes

Yes

General Characteristic

Power

1.5V Alkaline Batteries(LR03)X 4

LCD Size

47mm X 28.5mm

Product Color

Red and Grey

Product Net Weight

335g

Product Size

68mm X 245mm X 40mm

Standard Accessories

UT255A-Batteries,Insulation Rod ,Tool Box

UT255B-Batteries,Insulation Rod,Receiver,Tool Box

Standard Individual Packing

Gift Box, English Manual

Standard Quantity Per Carton

6 PCs

Standard Carton Measurement

1030mm X 520mm X 450mm (0.241CBM Per Standard Carton)

Standard Carton Gross Weight

40Kg



Accessories:

Batteries,
Insulation Rod,
Receiver,
Tool Box

UT255B-High Voltage Clamp Ammeter-Sunlight
