Combustible Gas(EX) Detector Datalogger GD-10(EX)

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
Sunlight
Model Number:
GD-10(EX)
Datalogger:
6000 results
Gas sensor:
Replaceable
Battery:
Lithum Battey
IP Rating:
IP65
Measuring Range:
Customized
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Color Box
Port
Shanghai
Lead Time :
3-10 working days after we receive down payment

Applications:

GD-10 gas detector is easy to use, no need to replace the battery, waterproof,dust-proof and anti-explosion design, with replaceable in-line gas sensor module, it is a ideal gas detector for safety inspection at site.

GD-10 gas detector housing is made of silicone rubber casting, non-slip, waterproof and dustproof design, suitable for use in a variety of complex situations.

The explosion-proof instrument design, proof grade EX Ia iiB T3 Gb.

GD-10 gas detector uses high-performance gas sensor, good stability, high sensitivity, long standby time, and has anti-magnetic interference and anti-high temperature functions.

GD-10 gas detector is widely used in non-coal mining, metallurgy, steel, archeology, adventure, coal chemical, oil, gas, municipal, fire control areas.



Features:

6000 alarm recordings datalogger and inquiry

Using of advanced technology microcontroller elements

Bright LCD display, LCD English display reading

Sensor fault self-detection , automatic calibration function.

Using replaceable sensor modules

Two level alarm ( sound, light , vibration )

Measuring gas: combustible and toxic gases

Accuracy : +/-3% F.S.

Response time : T90 <20s

Detection method: natural diffusion

Working environment : Temperature -40 °C ~ 70 °C; humidity <95% RH non-condensing

Operating voltage : 3.7v ,1700ma rechargeable lithium battery

Working hours : 300 hours under continuous toxic

IP Rating : IP66

Weight: about 132g ( including battery )

Dimension : 100mm * 58mm * 30mm

Standard : QB-HNZA2012-001

Selectable Gas (one of them):

Gas

Measuring Range(standard)

Measuring Range(optional)

 Resolution

Response Time



combustible gas (EX)





0-100%LEL



0-100%VOL



1%LEL/1%vol



</=15S



 oxygen(O2)



0-30%VOL



0-30%VOL



0.1%vol



</=15S

sulfuretted hydrogen (H2S)



0-100PPm



0-50,200,1000PPm



0.1/1PPm



</=15S



carbon monoxide (CO)



0-1000PPm



0-500/2000/5000PPm



0.1/1PPm



</=15S



nitrogen dioxide (NO2)



0-20PPm



0-50,1000PPm



0.1/1PPm



</=20S



carbon dioxide (CO2)



0-5000PPM



0-1%,5%,10%VOL



1PPM/0.01%VOL



</=20S



nitric oxide(NO)



0-250PPm



0-500,1000PPm



1PPm



</=20S



sulfur dioxide (SO2)



0-20PPm



0-50,1000PPm



0.1/1PPm



</=20S



chlorine (CL2)



0-20PPm



0-10,100PPm



0.1PPm



</=20S



ammonia gas (NH3)



0-100PPm



0-50,500,1000PPm



0.1/1PPm



</=20S



hydrogen (H2)



0-100%LEL



0-1000ppm



1%LEL/1ppm



</=20S

 hydrogen phosphide (PH3)



0-20ppm



0-20, 0-100PPM



0.1PPM



</=20S



 hydrogen chloride(HCL)



0-20PPm



0-20,50,100PPm



0.01/0.1PPm



</=20S



chlorine dioxide (CLO2)



0-50PPM



0-10,100PPm



0.1PPm



</=20S



 hydrogen cyanide (HCN)



0-50PPM



0-100PPm



0.1/0.01PPm



</=20S



ethylene oxide (ETO)



0-100PPM



0-100PPm



1PPM/0.1PPM



</=20S



ozone (O3)



0-10PPm



0-20,100PPm



0.01PPm/0.1PPM



</=20S



formaldehyde (CH2O)



0-20PPm



0-50,100,PPm



1/0.1PPm



</=20S



fluorine  (F2)



0-10ppm



0-1,10PPm



1PPM/0.1PPM



</=20S



hydrogen fluoride (HF)



0-10PPm



0-1,10,50,100PPm



0.01/0.1PPm



</=20S



dimethylbenzene(C8H10)



0-20PPm



0-5,10,50,100PPm



0.01/0.1PPm



</=20S



methylbenzene(C7H8)



0-20PPm



0-5,10,50,100PPm



0.01/0.1PPm



</=20S

Other gases are optional

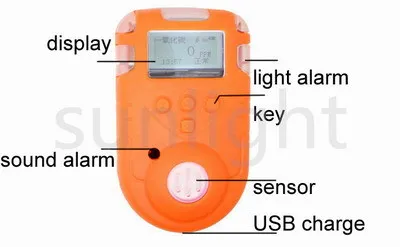

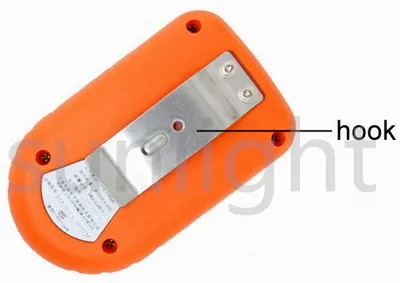

Picture:
